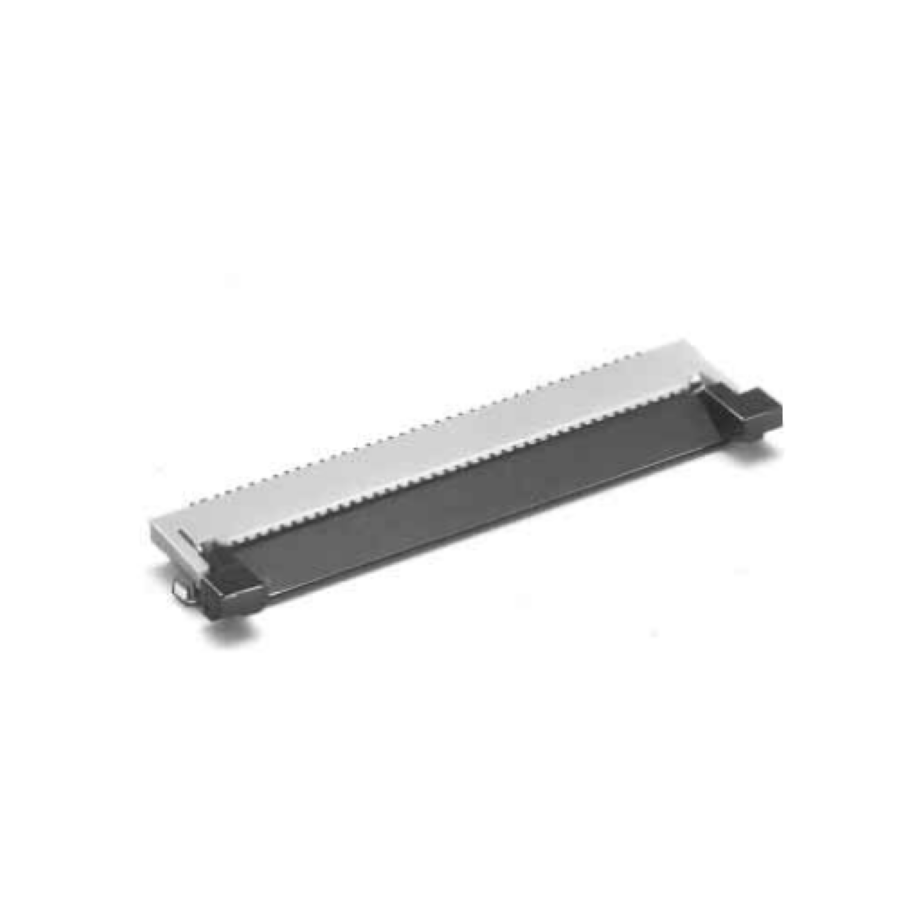

FH12A-10S-0.5SH(55)
Manufacturer:
Hirose Electric
Mfr.Part #:
FH12A-10S-0.5SH(55)
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 9.5 mm |
| Width | 7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 6.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 400 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Female |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Location | Top |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Polyphenylene |
| Housing Color | Beige |
| Contact Voltage Rating (AC) | 50 V |
| Contact Pitch | 0.5 mm |
Stock: 2697
Distributors
pcbx
pcbxUnit Price$0.75063
Ext.Price$0.75063
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.75063 | $0.75063 |
| 10 | $0.61042 | $6.10420 |
| 25 | $0.52920 | $13.23000 |
| 50 | $0.51314 | $25.65700 |
| 100 | $0.49757 | $49.75700 |
| 300 | $0.46349 | $139.04700 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.40524 | $405.24000 |
| 3000 | $0.34881 | $1046.43000 |
